Ball Valves
Two Piece Flanged Ball Valves
API6D / BS5351 compliant design for industrial applications
The valves may be full bore or reduced bore and are with lever operation (normally up to DN150/6"), quarter turn gear operated and actuated operated for sizes DN200 and higher. The valves are bi-directional and suitable for on/off and control applications.
General Specifications
| Design STD | API6D / BS5351 |
| Face To Face | ASME B16.10 |
| To Suit | Flanges as per ANSI B16.5 |
| Size | DN15 to DN 600 (0.5" To 24") |
| Body | WCB/CF8/CF8M Etc. |
| Ball | CF8/CF8M |
| Seat | PTFE/Carbon or Glass Filled PTFE |
| General Applications | Petroleum Processing, Chemicals and Process Industries |

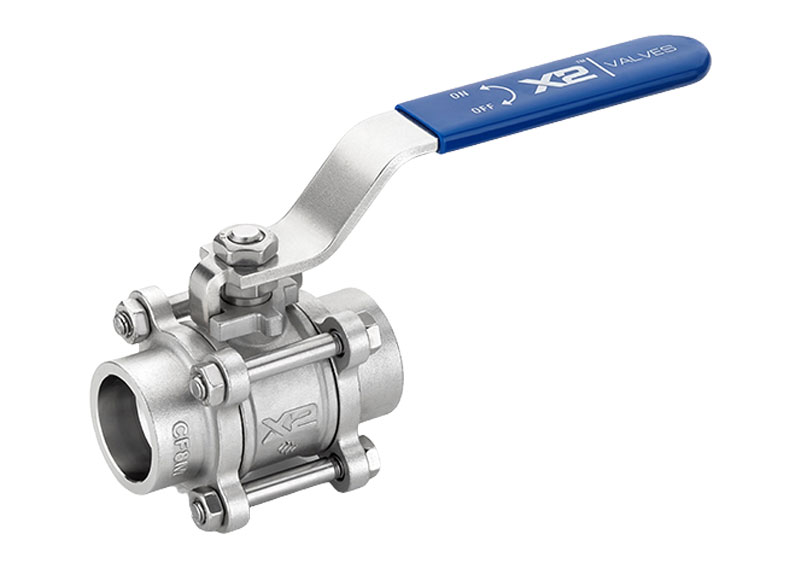

Two Piece & 3 Piece Screwed/Socket Weld Ends
Versatile ball valves for various end connections
High-quality ball valves available in multiple configurations for different piping requirements with excellent performance and durability.
General Specifications
| Bore | Full / Regular |
| Size Range | 1/4" - 2" in Screwed End/SW End (1 Piece / 3 Piece) 1/2" - 8" in Flanged End (3 Piece) |
| Body | WCB/CF8/CF8M |
| Ball | SS304 / SS316 / CF8/CF8M Etc. |
| Seat | PTFE/RTFE |
| Pressure Rating | #150 / #300 |
| Operation | Manual Lever/ Gear / Pneumatic Operation |

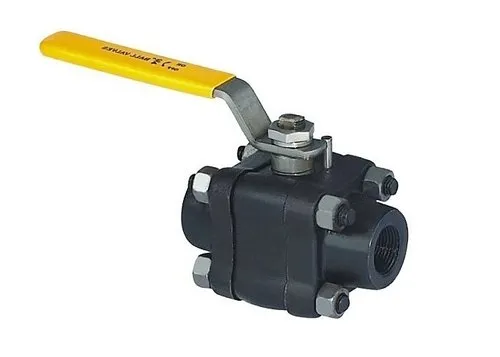

Forged 3 Piece Ball Valves
High-pressure ball valves with superior strength
Manufactured using high-quality forged materials for enhanced durability and performance in demanding applications.
General Specifications
| Design STD | Manufacturer's Standard |
| Face To Face | Manufacturer's Standard Size: 1/4" To 2" |
| Body | A105/ASTM A183 F304/F316 / F316L |
| Ball and Stem | SS304/316 / 316L |
| Seat | PTFE/ RTFE (Glass/Carbon filled) / Metal |
| Pressure Rating | #800 And #1500 |
| Bore | Regular (Reduced) And Full Bore |
| THREE WAY VALVES ARE ALSO AVAILABLE with T Port And L Port Options | |

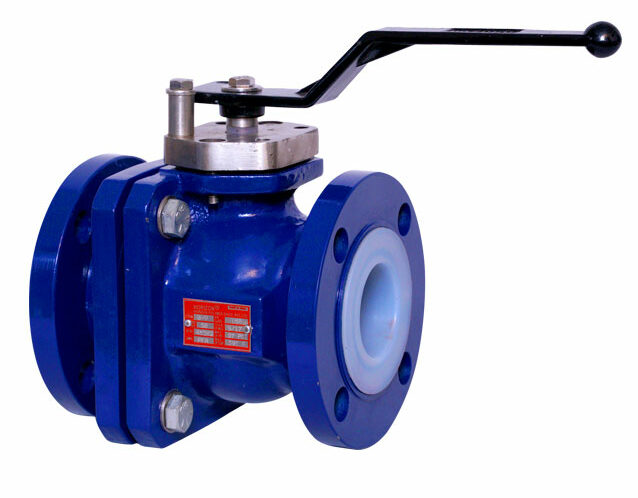

Teflon Lined Ball Valves
Corrosion-resistant valves for chemical applications
Specially designed with Teflon lining for handling corrosive fluids and chemicals with excellent resistance properties.
General Specifications
| Pressure Rating | Body 15 bar And Seat 10 bar |
| Spark Test | 15KV |
| Body | DI With 3mm PFA Lining |
| Ball and Internals | SS With 3mm PFA/FEP lining |
| Temperature | Max 208°C |
| Size | 1/2" To 8" |

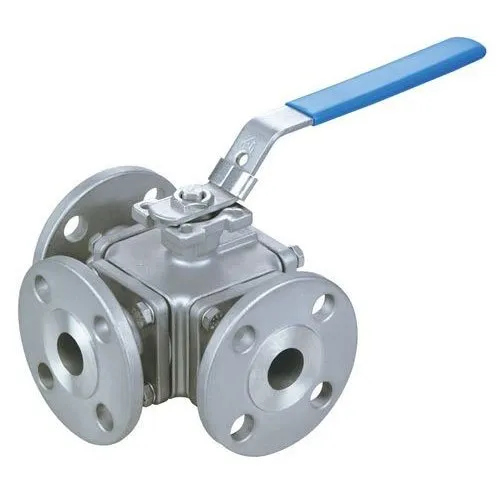

Cast 3 Way Ball Valves
Versatile directional control valves for complex systems
High-performance 3-way ball valves designed for flow direction control in various industrial applications with multiple port options.
General Specifications
| Design STD | API6D, ISO-17292 |
| Face To Face | Manufacturer's Standard Size: 1/2" To 8" |
| Body | WCB/CF8/CF8M |
| Ball and Stem | SS304/316 / 316L |
| Seat | PTFE/RTFE (Glass / Carbon filled) |
| Pressure Rating | #150 And #300 |
| Bore | Regular (Reduced) And Full Bore |
| Port Type | L Port / T Port |
| Operation | Manual and Actuated (Pneumatic / Electrical) |

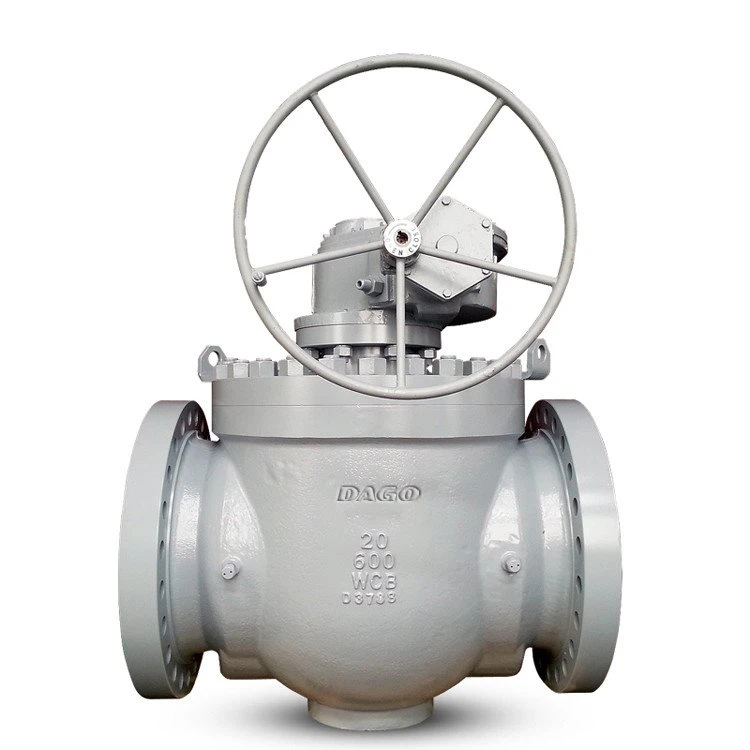

Top Entry Ball Valves
Easy maintenance valves with top access design
The valves may be full bore or reduced bore and are with lever operation (normally up to DN150/6") and Quarter turn gear operated for sizes DN200 and higher. The valves are bi-directional and suitable for on/off and control applications.
General Specifications
| Applicable Standards | |
| Design STD | API6D / BS5351 |
| Face To Face | ASME B16.10 |
| To Suit | Flanges as per ANSI B16.5 |
| Technical Specifications | |
| Size | DN25 to DN 600 (1" to 24") |
| Pressure Rating | #150, #300, #600 and #900 |
| Body | WCB/CF8/CF8M, Duplex SS etc |
| Ball | CF8/CF8M, Duplex SS etc |
| Seat | PTFE/ Carbon or glass filled PTFE |
| Seat Design | Floating in small sizes and Trunnion mounting in larger sizes |
| General Application | Petroleum processing, chemicals and process Industries |
Actuated Valves
Automated valve solutions with various actuation options
We supply actuated Ball valves and Butterfly Valves with Pneumatic actuators (rack and Pinion / Scotch Yoke type) with on/off as well as Control accessories. Weather proof / Ex proof accessories included.
Available Accessories
| 1. Solenoid Valve | For automated control |
| 2. Limit Switchboxes | With mechanical/PCF sensor |
| 3. Air Filter Regulator | For clean air supply |
| 4. Positioners | Pneumatic / electro Pneumatic |
| 5. Quick Exhaust Valves | Volume boosters / Air Lock relays |
| 6. Manual Overrides | De-clutchable Gear Boxes |

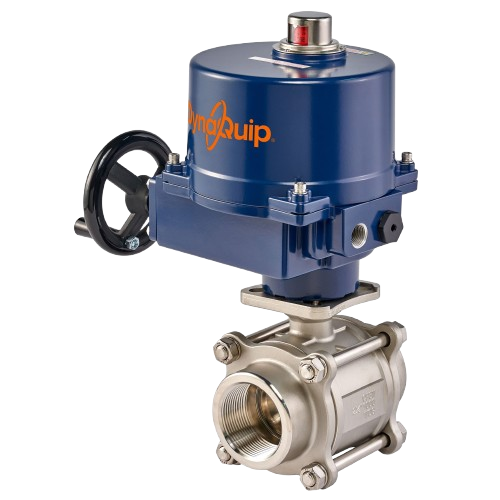

Electrically Actuated Valves
Electric motor operated valves for remote control
Electrically operated Ball valves, Butterfly valves, gate valves and globe valves can be supplied for ON/Off duty and control duty applications with various voltage options and control configurations.
